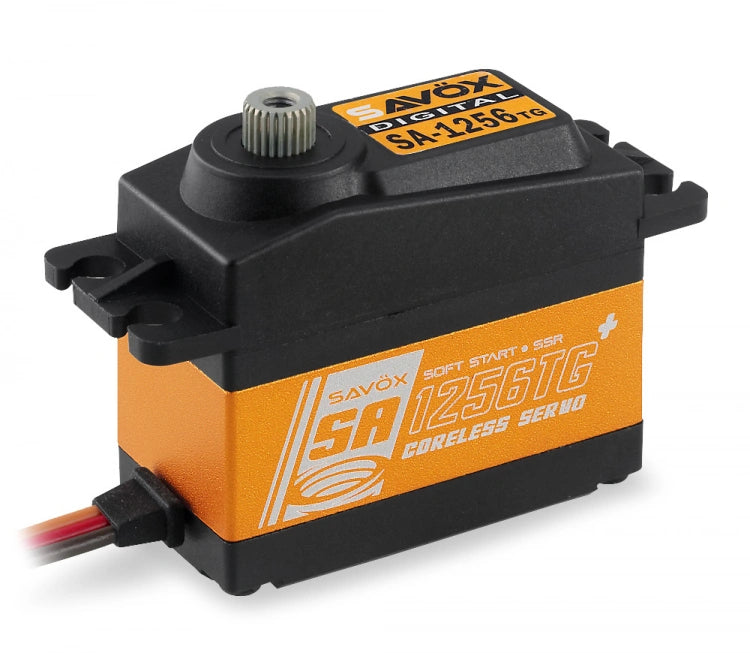

Savöx SA-1256TG Plus Servo 20Kg 0,15s Alu Coreless Titanium Gear

Technical Details:

• Line: ORIGINAL LINE
• Application: AIRPLANE
• Servo Size: Standard
• Operating Voltage: 4.8V-6.0V
• Speed @ 4.8V: 0.18s/60°
• Torque @ 4.8V: 16kg/cm
• Speed @ 6.0V: 0.15s/60°
• Torque @ 6.0V: 20kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Coreless
• Case Type: Hybrid (Aluminum/Composite)
• Protection: Dust Resistant
• Dimensions (LxWxH): 40.3x20.2x37.2mm
• Weight: 64g
• Gear Type: Titanium
• Compatibility: Sanwa SSR
• PCB Board: 12bit 4096, Softstart, Lock protection
• Horn Gear Spline: 25T(Φ6)
• Rotating Direction: Counterclockwise (when 1500→2000 μsec)
• Max Travel: ~130° (when 900→2100 μsec)
• Operating Travel: 100° (when 1000→2000 μsec)
• Neutral Position: 1500 μsec
• Bearing: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 300 ±5mm
• Connector: JR
• Stall Current @ 4.8V: 4000mA
• Operating Current @ 4.8V: 100mA
• Stall Current @ 6.0V: 5000mA
• Operating Current @ 6.0V: 120mA
• Idle Current: 5mA
• Dead Band Width: 3-5 μsec
• Frequency Range: 50-360Hz
• Control System: Pulse Width Modification
• Operating Temperature: -10°C to 50°C
