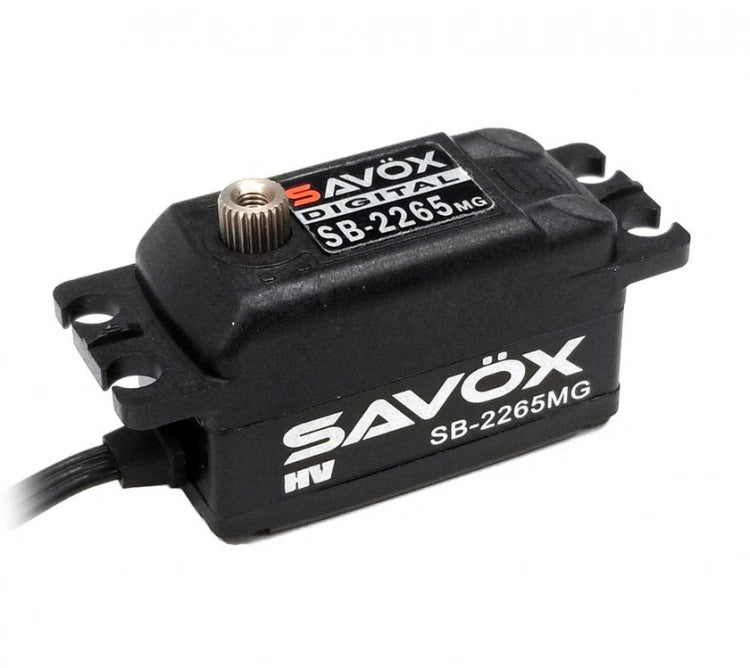

Savöx SB-2265MG Servo 13Kg 0,08s HV Brushless Metal Gear Low

Specifications:

• Input Voltage: 6-8.4V
• Torque @ 7.4v - 12.0kg
• Speed @ 7.4v - 0.08 sec/60 deg
• Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
• Weight: 57g
• Operating Temperature: -10° - 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
